Manufacturing precision is essential because even minute mistakes can significantly impact a product’s functionality and safety. Industries utilize advanced fabrication techniques to achieve the necessary high levels of accuracy. Two well-known techniques are chemical etching and traditional cutting. Conventional cutting uses mechanical techniques like CNC machining and laser cutting, whereas chemical etching uses chemicals to remove material and produce detailed shapes.
Both approaches are crucial in various applications, including electronics, aerospace, automotive, and medical devices. This essay compares and contrasts chemical etching and traditional cutting, emphasizing the variations in their uses, accuracy, expenses, and environmental effects. Manufacturers can balance the requirements for accuracy, efficiency, and sustainability by choosing the approach that best fits their unique needs and being aware of these differences.
Overview of Chemical Etching
Chemical etching, or photochemical machining (PCM), is a subtractive manufacturing technique that selectively removes material from a substrate using acids or other chemicals. The workpiece is cleaned first, and then a photoresist coating is applied. The desired design is transferred onto the photoresist by placing a photomask over the coating and using ultraviolet light to transfer the pattern. The underlying material is then exposed by developing and removing the unexposed regions. Chemicals, usually acids, are used to etch away the exposed portions, leaving exact and complex designs behind.
Applications
Chemical etching is commonly employed in industries that need a high degree of complexity and precision. It creates printed circuit boards (PCBs) with intricate elements for the electronics sector. Aerospace applications involve intricately designed lightweight components. Chemical etching helps the medical device sector create delicate and precise tools. Furthermore, it has applications in manufacturing ornamental goods and micro-electromechanical systems (MEMS).
Advantages
One of chemical etching’s primary advantages is its capacity to create highly detailed and exact designs that are difficult or impossible to achieve with traditional cutting procedures. With little mechanical strain on the material, it may form intricate shapes while maintaining its integrity and qualities. Furthermore, thin and delicate materials can be processed with chemical etching without the danger of distortion or damage.

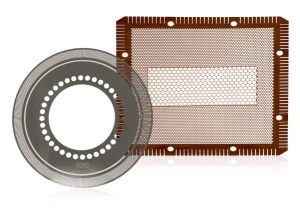

Comparative Analysis
Precision and Accuracy
With tolerances as tight as ±0.01 mm, chemical etching is perfect for creating complex patterns and minute details because of its remarkable accuracy and precision. Although they can also achieve great precision, conventional cutting techniques like laser and CNC machining have difficulty with beautiful information, mainly when working with thin or sensitive materials.
Complexity of Designs
Because chemical etching can remove material uniformly without physical contact, it is an excellent method for generating complex and elaborate designs. Fine details, sharp interior corners, and complex geometries can all be quickly produced with this method. Even though they can create complicated forms, conventional cutting techniques can have drawbacks because of tool access and physical pressures during the cutting process, leading to less detailed designs than chemical etching.
Material Suitability
Many materials, including metals, glass, and polymers, can be chemically etched. Thin materials and those susceptible to mechanical stress benefit significantly from this process. While a wider variety of material types and thicknesses, such as metals, polymers, and composites, can be cut with conventional processes, they might not work well for very thin or delicate materials.
Production Speed
Chemical etching usually requires lengthier setup periods because coating procedures and photomask generation are needed. But once it’s set up, it can process many components quickly and simultaneously, which makes it practical for high-volume production. While conventional cutting processes can manufacture individual components rapidly and with fewer setup periods, scaling to huge volumes may require extra equipment and tools.
Cost Factors
The initial setup cost might be significant because chemical etching requires photomasks and chemical processing equipment. However, ongoing production expenses are comparatively minimal, particularly for large quantities. Conventional cutting methods typically have lower setup costs for complex or high-precision operations. Still, they also have higher ongoing expenses because of tool wear and maintenance.
Environmental Impact
Hazardous chemicals are used in chemical etching, and their handling and disposal must be done carefully to reduce any adverse environmental effects. The generation of waste can be substantial if improperly managed. The waste produced by conventional cutting techniques is usually in the form of chips or dust, which are easier to handle and recycle. On the other hand, laser cutting has a considerable environmental impact due to its high energy consumption.
Frequently Asked Questions
How does conventional cutting differ from chemical etching?
Conventional cutting removes material by mechanical means, such as mechanical sawing, laser cutting, and CNC machining. Unlike chemical etching, it employs physical tools and machinery to shape materials, which achieves excellent precision through chemical processes.
What are the main advantages of chemical etching?
The main benefits of chemical etching are the capacity to create highly complex and exact designs, low mechanical stress on materials, adaptability for thin and sensitive materials, and effective processing of several pieces at once.
In which scenarios is conventional cutting more suitable?
Applications requiring rapid manufacture of specific pieces and thicker, more durable materials are better suited for conventional cutting. It is also perfect for making robust, long-lasting parts that can bear mechanical strain.
Are there environmental concerns with chemical etching?
Chemical etching uses dangerous chemicals that must be handled and disposed of carefully to reduce their environmental influence. Proper waste management and disposal practices are essential to lessen these worries.
Which method is more cost-effective?
Each method’s cost-effectiveness varies depending on the job. Chemical etching is more expensive to set up initially but cheaper to produce continuously, especially in large quantities. Because of tool wear and maintenance, conventional cutting often has lower initial costs but higher ongoing expenditures.
Conclusion
This article outlined the critical distinctions between chemical etching and traditional cutting in terms of accuracy, design complexity, material suitability, production speed, expense, and environmental effect. Both approaches are essential in a variety of sectors. While conventional cutting is best suited for rigid materials and rapid manufacture of individual pieces, chemical etching produces complicated and exact designs.
When deciding between these approaches, consider your project’s unique requirements and priorities, including production volume, material type, design complexity, and environmental considerations.
